FACT SHEET
Location
Selama, Perak
Owner
Kerian Energy Sdn Bhd
Consultant
SMEC (M) Sdn Bhd
Completion Date
2nd May 2017



The proposed Project will be run-of-the-river scheme involving two separate powerhouses with total installed capacity of approximately 14MW. The upper scheme feeds Bintang Powerhouse (6.4MW), fed by an intake on Sg. Bintang and a second intake on Sg Kerian via two separate penstock pipelines. The lower scheme comprises Kerian Powerhouse (7.6MW), which is fed by the tailrace flow from Bintang Powerhouse.



a) Intakes
Shape of Reservoir : Rectangular (Clear Water Tank)
Bintang Intake : Intake Level = 501m
Upper Kerian Intake : Intake Level = 281m
c) Powerhouses
Bintang Powerhouse : Turbine Level = 254m
Gross Head = 247m
Turbine Type = Pelton
Plant Capacity = 7.6MW

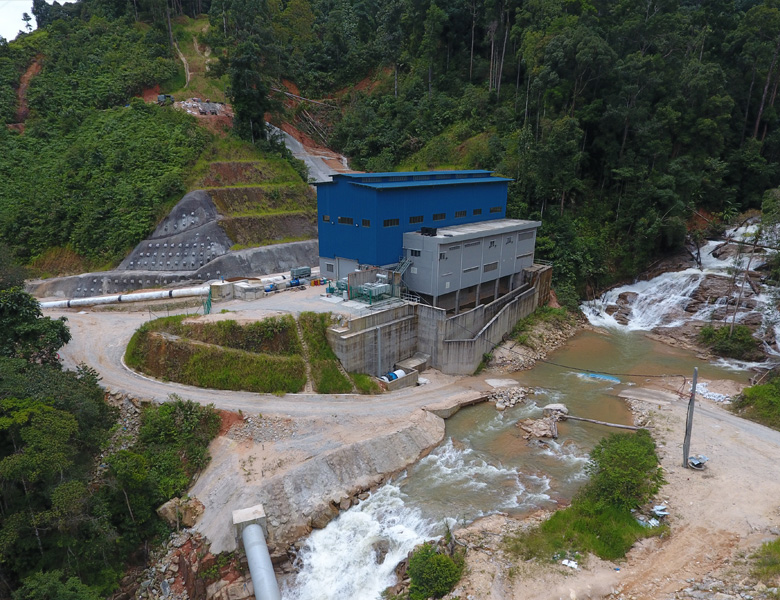

Kerian Powerhouse : Turbine Level = 254m
Gross Head = 129m
Turbine Type = Francis
Plant Capacity = 6.4MW
Bintang Powerhouse to Kerian Powerhouse : Type = MS Penstock (Pipe)
Diameter = 1900mm
Thickness = Varies from 10mm to 14mm
Length = 4262m
IL at Inlet – 248.40m
IL at Outlet – 125.21m
d) Civil Works
Intakes : Weir, Intake Inlet, Inlet Channel, Settling Basin, Collection Chamber, Retaining Wall, Control Room, including hydromechanical items, instrumentations, etc.
Powerhouse : Powerhouse, Transformers, Switchgear Buildings
e) Mechanical & Hydromechanical Works
Intakes & Powerhouses : i) Hydromechanical equipments including trashrack, stoplog, gates, valves, and associated equipments
ii) Overhead gantry crane and associated equipments
iii) Building services
f) Electrical Works
Intakes & Powerhouses : i) Small power equipments and power cabling
ii) Lightning protection, earthing, cabling
iii) CCTV monitoring and telecommunication systems
