FACT SHEET
Location
Kluang, Johor (From Paloh to Renggam)
Owner
Keretapi Tanah Melayu Berhad
Consultant
KL Consult Sdn Bhd
Managing & Engineering Consultant
Sepakat Setia Perunding Sdn Bhd
Completion Date
28 February 2023
a) Track Length & Earthwork Volumes
Track Chainage : CH647900 – CH690200
Track Length : 42,300 m
Locat Cut Volume : 1,590,992.12 cu.m
Local Fill Volume : 1,632,755.75 cu.m
Import Fill Volume : 2,333,993.04 cu.m
USM Volume : 1,174,058.85 cu.m
b) Scope of Works for Infra Package
Earthworks : CH647900 – CH690200
Track Length : Earth filled embankment for double track including ground treatment up to sand blanket and sub-ballast including turfing, certain locations require construction in stages.m
Track Diversion : TD01, TD02, TD03, TD04, TD05
Cut & Slew : C&S1, C&S2, C&S3, C&S4, C&S5, C&S6, C&S7, C&S8, C&S9
Ground Treatment : i) Removal & Replacement,
ii) Stone Column,
iii) Piled Embankment
Box Culvert : i) RC Box Culvert including rip rap at inlet & outlet – 58nos
ii) PCUD – 4nos
iii) Trapezoidal Drain – 2nos
Drainages : Trackside drainages – PCUD, RCUD, Toe Drains & Berm Drains
Retaining Walls : i) RC Retaining Walls – 8nos
ii) Soil Nail Walls – 13nos
iii) Reinforced Soil Wall – 18nos
iv) Contiguous Micro Pile Wall – 1no
Cable Trough & Manholes : Cable trough for track embankment approx. 39km, and manholes
Fencing : Fencing along 42.3km ROW on both LHS and RHS
River Improvement : Rip Rap at BRV24, BRV25, BRV26, BRV27, BRV28, BRV29
c) Scope of Works for Bridge Package
River Bridge : BRV24, BRV25, BRV26, BRV27

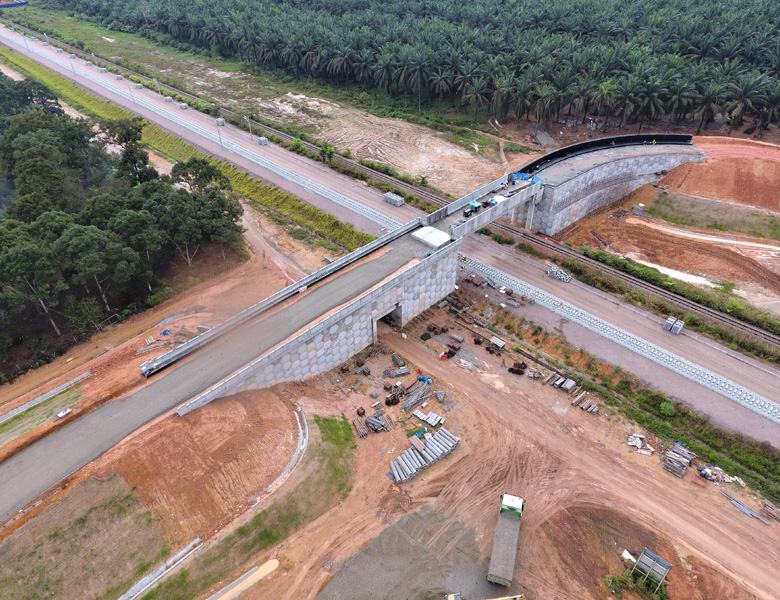

Road Over Bridge : ROB13, ROB14, ROB17 /td>
Road Under Bridge : RUB08, RUB10
Motor Pedestrian Bridge : MPB04
JKR Road Diversion : J25
Dismantling Old Bridge : BRV24, BRV25, BRV26, BRV27, BRV28, BRV29
