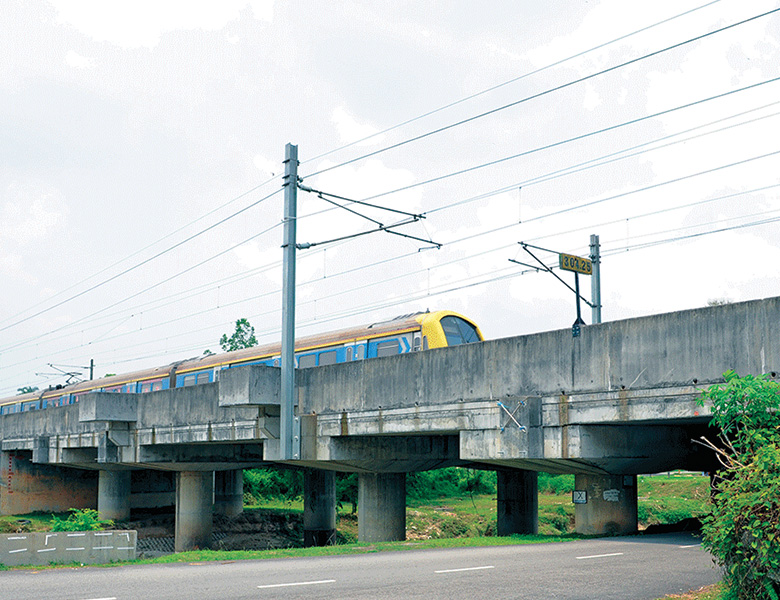

Electrified Double Track Project Between Rawang and Ipoh
FACT SHEET
Location
Various, Selangor and Perak
Owner
DRB-HICOM Berhad
Consultant
Ranhill Bersekutuan Sdn Bhd
Completion Date
November 2003
Scope of Works
a) Railway Bridge RB731
Type : Double Track Railway Bridge
No. of Span : 3
Length of Bridge : 29.2m
Length of road / rail : 100m approach embankment

b) Railway Bridge RB731
Type : Double Track Railway Bridge
No. of Span : 7
Length of Bridge : 87.6m
Length of road / rail : 100m approach embankment

c) Railway Bridge RB731
Type : Double Track Railway Bridge
No. of Span : 5
Length of Bridge : 46.4m
Length of road / rail : 100m approach embankment

d) Railway Bridge RB774
Type : Double Track Railway Bridge
No. of Span : 5
Length of Bridge : 62.4m
Length of road / rail : 100m approach embankment

e) Railway Bridge RB810
Type : Double Track Railway Bridge
No. of Span : 5
Length of Bridge : 62.4m
Length of road / rail : 100m approach embankment

f) Road Bridge
Type : Road Bridge
No. of Span : 10
Length of Bridge : 343m
Length of road / rail : 1.5km approach embankment

g) Interchange and Road Bridge over Rail
Type : Double Track Railway Bridge
No. of Span : 5
Length of Bridge : 815.25m
Length of road / rail : 1,200 m
